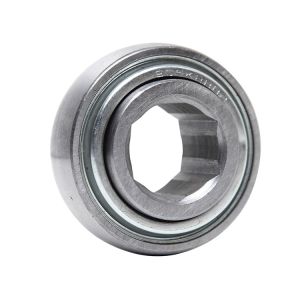

Custom Gcr15 Disc Harrow Agricultural Machinery Bearing W208PPB8

Brand Name : SFT

Model Number : W208PPB8

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 20-45DAYS

Packaging Details : carton,pallet

Type : BALL, Agricultural/Farm Implement Bearings

Seal type : Single lip or R3(L3)

Feature : Stable Performance:low Voice

Cage : Steel Cage

Bore Size : 23.813 - 55.576 mm

Application : Machinery

Contact Now

High quality custom Gcr15 disc harrow agricultural machinery bearing W208PPB8

Product Description

Features

1) Series available: FDxxx, STxxx, GNExxxKRRB, xxxKRRB, xxxKPPB, WxxxPP, WxxxPPB, GWxxxPP, GWxxxPPB, GUWxxxPPB, PFxxx, SBXxxx, XFxxx, WIRxxx

2) Material: Beaing Steel, Stainless steel

3) Cage: PA66, Optional

4) Steel Ball: GCR15

5) Shaft: GCr15

6) Outer ring: Gcr15

7) Axial clearance: optional

8) Radial clearance: optional

9) Static Load: optional

Series of the disc harrow bearings

1)Round bore

2)Square bore

3)Hex bore

4)Disk harrow units

Advantage

1)Low noise precision bearings
2)Strict quality control system with perfect QC facilities
3)Prompt delivery and good service

Applications

1)Agriculture,

2)light textile,

3)mining,

4)food &beverage,

5)pharmaceutical,

6)chemical processing,

7)printing,

8)dyeing,airport,

9)air-conditioning,

10)various kinds of conveying and rolling devices.

Agricultural bearing number as follows

Custom Gcr15 Disc Harrow Agricultural Machinery Bearing W208PPB8

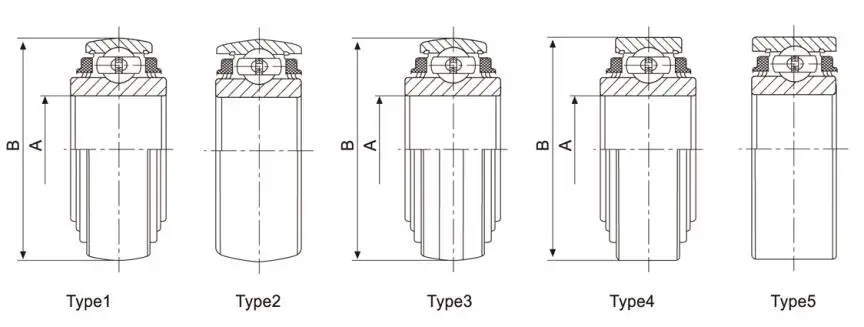

Bearing No.	Type	Bearing Bore Size		Outside Dia.		Ring Width
		A		B		Inner Ring		Outer Ring
		(in.)	(mm)	(in.)	(mm)	(in.)	(mm)	(in.)	(mm)
205PPB7	1	0.9375	23.813	2.0472	52	1.3748	34.92	0.591	15
W208PPB7	1	1.1880	30.175	3.1496	80	1.189	30.2	0.709	18
W208PP10	4	1.5005	38.113	3.1496	80	1.691	42.96	0.827	21
W208PPB23	1	1.5005	38.113	3.1496	80	1.691	42.96	1.189	30.2
W209PPB2	2	1.7717	45	3.3460	85	1.189	30.2	1.189	30.2
W209PPB4	2	1.5350	39	3.3460	85	1.189	30.2	1.189	30.2
W210PP2	5	1.9380	49.225	3.5433	90	1.189	30.2	1.189	30.2
W210PPB2	2	1.9380	49.225	3.5433	90	1.189	30.2	1.189	30.2
W211PP2	5	2.1880	55.575	3.9370	100	1.313	33.34	1.313	33.34
W211PPB2	2	2.1880	55.575	3.9370	100	1.313	33.34	1.313	33.34

Bearing No.	Type	Square Shaft Size	Square Bore Size	Outside Dia.		Ring Width
		Square Shaft Size	Square Bore Size	B		Inner Ring		Outer Ring
		(in.)	(mm)	(in.)	(mm)	(in.)	(mm)	(in.)	(mm)
W208PPB13	1	7/8	23.117	3.1496	80	1.437	36.5	0.709	18
W208PPB6	1	1	26.162	3.1496	80	1.437	36.5	0.709	18
W208PP5	4	1-1/8	29.972	3.1496	80	1.437	36.5	0.709	18
W208PPB5	1	1-1/8	29.972	3.1496	80	1.437	36.5	0.709	18
W208PP8	4	1-1/8	29.972	3.1496	80	1.437	36.5	1.189	30.2
W208PPB8	1	1-1/8	29.972	3.1496	80	1.437	36.5	1.189	30.2
W208PPB11	3	7/8	23.117	3.3760	85.75	1.437	36.5	1.189	30.2
W208PPB12	3	1-1/8	29.972	3.3760	85.75	1.437	36.5	1.189	30.2
W209PPB5	1	1-1/4	32.766	3.3460	85	1.437	36.5	1.189	30.2
W210PP4	5	1-1/8	29.972	3.5433	90	1.189	30.2	1.189	30.2
W210PPB4	2	1-1/8	29.972	3.5433	90	1.189	30.2	1.189	30.2
W211PP3	5	1-1/2	38.89	3.9370	100	1.313	33.34	1.313	33.34
W211PPB3	2	1-1/2	38.89	3.9370	100	1.313	33.34	1.313	33.34
W211PP5	4	1-1/2	38.89	4.0000	101.6	1.750	44.45	1.438	36.52
W211PPB6	3	1-1/2	38.89	4.0772	103.56	1.750	44.45	1.438	36.52
