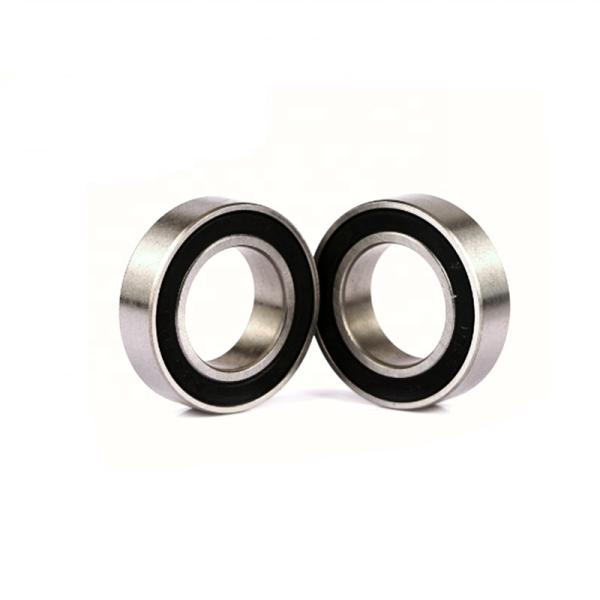

S15267-2RS Hybrid Ceramic Bearing Stainless Steel 15x26x7mm Axle Bicycle Ball Bearing

Brand Name : SFT

Model Number : 15267-2RS

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 20-45DAYS

Packaging Details : carton,pallet

Bore Size : 3 - 100 mm

Lubrication : self lubricant

Material of balls : Si3N4 Ceramic Balls

Size : 15*26*7mm

Cage : Stainless Steel

Seals Type : 2RS

Contact Now

Hybrid Ceramic Bearing Stainless Steel S15267-2RS

Product Description


Thin section deep groove ball bearing
 1) Bearing type: 6700,6800, 6900, R and 16series
 2) Bore diameter range: 4mm to 100mm
 3) Material: AISI52100, AISI440C
 4) Shield/closure: Z ZZ 2RS RS/open
 5) Tolerance codes: ABEC-1, ABEC-3, ABEC-5, ABEC-7
 6) Vibration level codes: V4, V3, V2, V1
 7) Internal clearance codes: C0, C2, C3, C4, C5
 8) Packing: Plastic tube packing or individual box packing

Bike front hub bearing: bearing steel, double seal. Bearing with low noise grease fill and stable performance. Applicable for Chin Haur(CH) Disc/HH series hubs & A2Z XCR/XCF series hubs,Welcome to purchase

Note:
The clearance of the bearing is related to the play.
The default is the standard C0 clearance, which is usually 3-18um.
The corresponding principle is shown in the figure below.
If you don't need to shake, please choose C2 small clearance bearing
If you have any questions, please contact us before purchasing.

Product Name	15267-2RS MR15267 2RS 15x26x7mm Hybrid Ceramic Bicycle Ball Bearing For Bike
Materials	Stainless Steel+ceramic bearing
Model Supported	Deep Groove Ball Bearing (60 series, 62 series, 63 series, 64 series, 68 series and 69 series, 160 series)
	Angular Contact Ball Bearing (70 series, 72 series, 72 series and 79 series.)
	Double Row Angular Contact Ball Bearing (52 series, 53series)
	Self-aligning Ball Bearing (12 series, 22 series, 13 series, 23 series.)
	Thrust Ball Bearing ( 511 series, 512 series)
	Ball Bearing for Units (UC2 series)
	Inch Size ( 16 series, R series)
Size :	15267mm

Related Products

Item No.	Dimension (mm)				Basic Load Rating (N)		Limiting Speed (rpm)		Weight (Kg)
Item No.	d	D	B	r (min)	Dynamic	Static	Grease	Oil	Weight (Kg)
685	5	11	3	0.15	775	317	41000	49000	0.0011
686	6	13	3.5	0.15	1080	438	37000	44000	0.0019
687	7	14	3.5	0.15	1170	511	35000	42000	0.0021
688	8	16	4	0.2	1600	714	33000	39000	0.0031
689	9	17	4	0.2	1600	734	31000	37000	0.0032
6800	10	19	5	0.3	1590	760	30000	36000	0.005
6801	12	21	5	0.3	1900	1000	25000	30000	0.006
6802	15	24	5	0.3	1960	1260	24000	29000	0.007
6803	17	26	5	0.3	2130	1360	22000	26000	0.008
6804	20	32	7	0.3	3470	2240	19000	23000	0.019
6805	25	37	7	0.3	3660	2640	16000	19000	0.022
6806	30	42	7	0.3	4020	3120	13000	16000	0.026
6807	35	47	7	0.3	4310	3610	11000	14000	0.029
6808	40	52	7	0.3	4420	3890	10000	12000	0.033
6809	45	58	7	0.3	4590	4320	9000	10000	0.04
6810	50	65	7	0.3	6600	6080	7600	9000	0.052
6811	55	72	9	0.3	8800	8500	8500	10000	0.081
6812	60	78	10	0.3	11500	10900	8000	9500	0.103

S15267-2RS Hybrid Ceramic Bearing Stainless Steel 15x26x7mm Axle Bicycle Ball Bearing

Product Tags:

S15267-2RS Hybrid Ceramic Bearing

15x26x7mm Hybrid Ceramic Bearing

S15267-2RS Axle Bicycle Ball Bearing

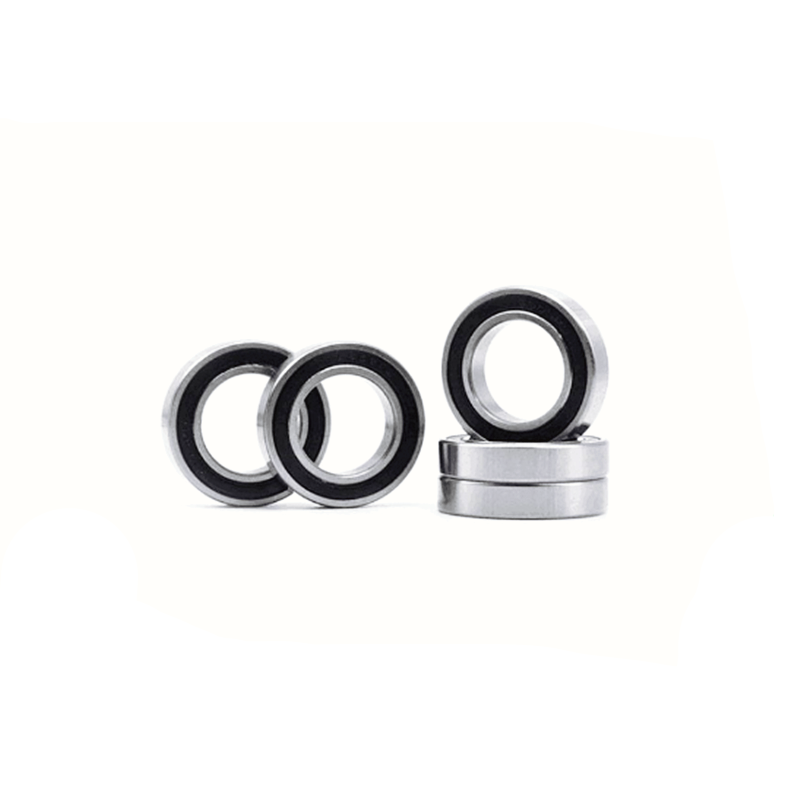

S15267-2RS Hybrid Ceramic Bearing Stainless Steel 15x26x7mm Axle Bicycle Ball Bearing Images
